•Hot Gas Bypass •Can Provide Excellent Temperature Control •Comes at an Energy Penalty . Advanced Temperature Control Single Compressor Systems •Utilize microprocessor controls to improve overall system performance •Reduced Room Temp Differential Between Cut-In & Cut-Out minimum hot gas temperature for effective defrosting is around 50F (a defrost regulator setting of 75 psig). Figure 2 illustrates how an increase in the hot gas temperature results in an increase in convective heat loss and reduction in defrost efficiency. It is the author's observation that in many facilities, the hot gas temperature is ...

a 3-way solenoid valve to bypass hot refrigerant gas to a reheat coil that is placed after the cooling coil. The 3-way valve is usually controlled by a humidistat in the space that allows the unit to continue the moisture removal process after the dry bulb thermostat has been satisfied. ...

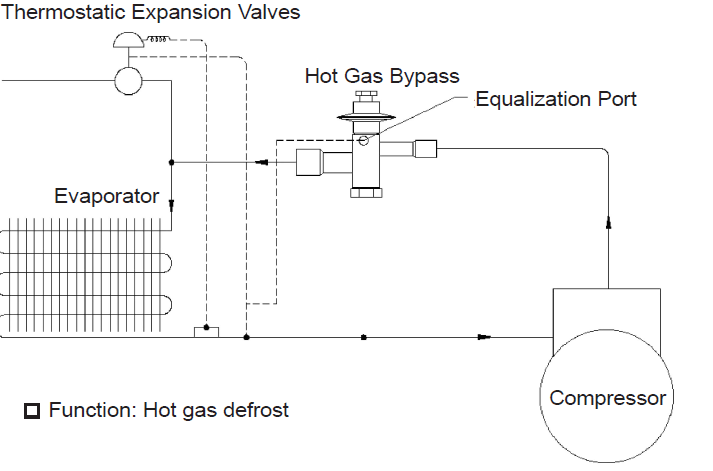

Hot gas bypass diagram

solenoid valve and/or a hot gas bypass circuit often are integrated into the system design. Fig. 6. Pressure/Enthalpy Diagram for Parallel Hot Gas Reheat Cycle Fig. 5. Parallel Hot Gas Reheat Cycle 1' 2' 3' 4' gradually introduces hot gas to the coil. Opening this valve first further reduces the likelihood of damaging pressure shocks. At the conclusion of this phase, the soft gas valve is closed. 4. HOT GAS PHASE: The hot gas solenoid is opened and hot gas now flows more quickly through the drain pan, warming it, and then into the coil. the hot gas defrost process. First, when the hot gas valve is sud-denly opened and any condensate in the hot gas line or residual cold liquid in the coil is propelled by the high-pressure vapor. Second, is at the conclusion of defrost, when liquid conden-sate inside the coil is suddenly released to the low side of the system.

Hot gas bypass diagram. Hot Gas Bypass It's not enough to deliver an HVAC system that meets the unique needs of each application. The owner also deserves a system that is the most reliable and the least costly to operate. In specific cases, adding hot gas bypass to the refrigeration system may be necessary in order to achieve all three goals. But more often than not, The discharge bypass valve should always be installed at the condensing unit rather than at the evaporator section. Not only will this ensure the rated bypass capacity of the valve but it will eliminate the possibility of hot gas con-densing in the bypass line (especially on remote systems). Methods and systems consistent with this invention control a hot gas bypass valve in a refrigeration system including a centrifugal compressor, a condenser, an evaporator, and a hot gas bypass line between the compressor and the evaporator. Such methods and systems continuously sense for a surge condition during operation of the refrigeration system, indicate a surge condition when the ... Fig - 1: Schematic diagram of HGBD cycle Fig-1 shows the schematic diagram of hot gas bypass defrosting method. Setup include basic components of refrigeration cycle- compressor, indoor and outdoor coil, expansion valve and accumulator. In this figure we can see that discharge of hot gas stream is bypassed from

The hot gas bypass line on the circuit runs from the discharge line of the compressor to the liquid line connection at the evaporator. Figure 4: Indoor Chiller with Remote Air-cooled Condenser Air Cooled Condenser Discharge line inverted trap (can be replaced with a check valve) Discharge Line Liquid Line Riser Hot gas bypass is recommended when the load on an evaporator varies and operation of the air conditioning system is desired at lower than design conditions. Additionally, hot gas bypass is used when the evaporator coil is designed for comfort cooling (latent and sensible loads) versus Hot Gas Bypass (HGBP) and the Pressure Enthalpy Diagram. Hot gas bypass (also called discharge bypass) is a feature in a refrigeration system uses to satisfy the mechanical needs of the system during low load conditions. Low load conditions can lead to frosting or freezing the evaporator, refrigerant flood back to the compressor, system ... The hot gas bypass valve is a mechanical valve used to introduce a false load into the evaporator and used on systems with varying loads, process chillers fo...

humidity) modulating hot gas reheat is the best way to provide 70°F/60% RH air to the conditioned space. See Figure 2. Figure 2: Modulating hot gas reheat is the best way to provide dehumidified 100% outdoor air at 70°F/60% RH Figure 3: Microchannel coils improve heat transfer . and reduce refrigerant charge requirements Figure 37 - Heat Pump with Hot Gas Bypass Split System Piping, Suction Down ..... 68 Figure 38 - Heat Pump with Hot Gas Bypass Split System Piping, Suction Up ..... 69 Figure 39 - Heat Pump with Modulating Hot Gas Reheat and Hot Gas Bypass Split System The hot gas bypass valve monitors the outlet pressure of the evaporator and will begin to modulate open as the load on the unit decreases to the point where the evaporator temperature is at the setpoint of the bypass valve. The bypass valves are factory adjusted to a setting of 61 psig (35°F evaporator temperature). This The purpose of a hot gas bypass system is to artificially load the compressor upon a decrease in evaporator load. TheHotGasBypass(HGBP)regulatorvalveautomatically responds to changes in suction pressure.When the refrigerant evaporating pressure is above the bypass valve setting, the valve remains closed.When the cooling

2

With the hot gas bypass option now no longer needed, additional energy savings can be attained with the ability to modulate compressor operation down to 10% of total capacity. The power input to the condenser fan(s) is also reduced as head pressure is tracked. 4.

Blog Post Tagged Hot Gas Bypass Engstack

• Hot gas bypass to the evaporator inlet • Modulating hot gas reheat • Suction service valves • Replaceable core filter driers • High capacity options via compressor and/or coils • High efficiency options via supply fan and/or coils • Corrosion protected condenser and/or evaporator coil Cabinet • Extended casing (SX models)

To Measure The Performance Of A Compressor A Hot Gas Chegg Com

Over the years I have noticed that there is some confusion as to what each are, what they do and when you need them. This article is written to clear things up. To start, the vapor/compression cycle of typical air conditioning is this: Heat transfers from the space to the evaporator coil and refrigerant in the

2

See all my HVAC Webinars at 👉 https://insightpartners.lpages.co/ 👈In this video, we compare Hot Gas Bypass to the Emerson Digital Compressor. HOT GAS BYPAS...

Figure 2 From Temperature Control Of Industrial Water Cooler Using Hot Gas Bypass Semantic Scholar

1. Concept is similar to a "three-pipe" hot gas bypass system yet only uses two pipes (shares the liquid line . and reduces field piping and labour cost). The main . difference is the third shared pipe does not need to be oversized. During the initial hot gas cycle Liquid is fed first, then a mixture, only at the latter part of the

Understanding Hot Gas Bypass Achr News

shows the PH diagram of R-22, indicating liquid, saturated mixture, and gaseous states. The top of the saturated "dome" is the critical point. Above this point, the refrigerant is not considered liquid or gas, but an undefined fluid.

Aquark Inverter Pool Heat Pump A Good Helper In Quick Efficient Defrosting Aquark

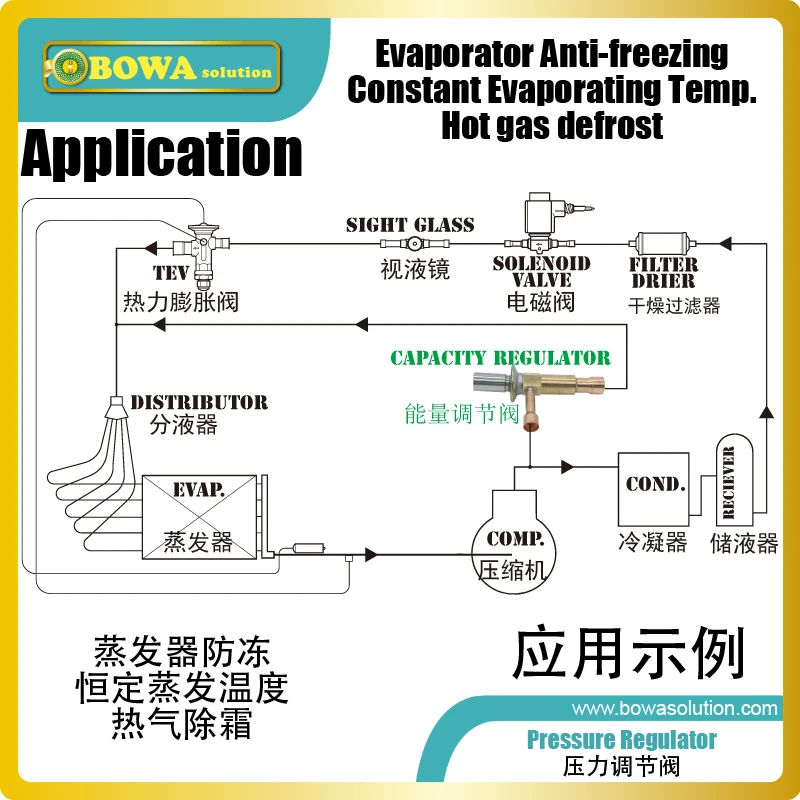

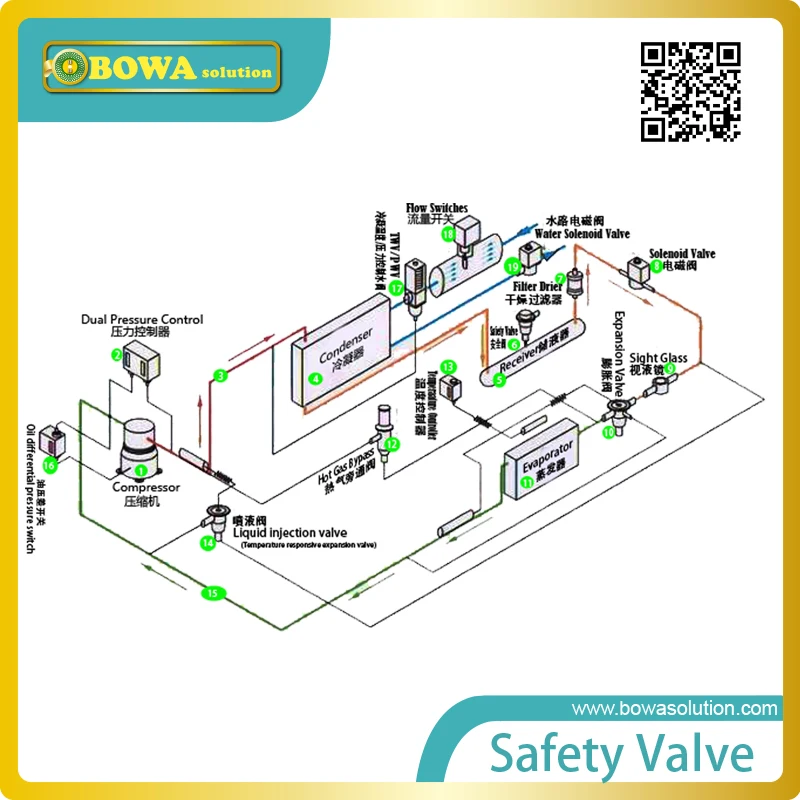

Hot gas bypass application diagram keys . ① Temperature Controller . ② Check Valve: It is important to install a check valve just after T-connection as shown. Check valve will not allow return of liquid refrigerant from condenser through electrical control

2

Methods and systems consistent with this invention control a hot gas bypass valve in a refrigeration system including a centrifugal compressor, a condenser, an evaporator, and a hot gas bypass line between the compressor and the evaporator. Such methods and systems continuously sense for a surge condition during operation of the refrigeration system, indicate a surge condition when the ...

Hvac Crankcase Pressure Regulating Valves Location Hvac Troubleshooting

The Hot Gas Bypass Valve Explained By Gary McCreadie. Hot gas bypass valves are a simple and very effective way to add a false load on an evaporator coil. What is a false load you ask. Well, as we have learned in the past, refrigerant pressures are directly related to the ambient temperature surrounding them.

Constant Pressure Valve Is Working As Hot Gas Bypass Of Air Dryer Against Ice Block To Protect Evaporator Freeze Protection Maker Machine Valve Aquariumvalve Bosch Aliexpress

The hot gas bypass valve monitors the outlet pressure of the evaporator and will begin to modulate open as the load on the unit decreases to the point where the evaporator temperature is at the setpoint of the bypass valve. The bypass valves are factory adjusted to a setting of 68 psig (40°F evaporator temperature). This

Refrigeration Basics Heat Pumps Part 1

Understanding Hot Gas Bypass. Hot gas bypass is recommended when the load on an evaporator varies and operation of the air conditioning system is desired at lower than design conditions. Additionally, hot gas bypass is used when the evaporator coil is designed for comfort cooling (latent and sensible loads) versus precision cooling (all ...

Hvac A New Application For Plot Digitizer Plus A Quick Look At Hydraulic Variable Speed Drives And Chiller Free Cooling Cycles Facebook

the hot gas defrost process. First, when the hot gas valve is sud-denly opened and any condensate in the hot gas line or residual cold liquid in the coil is propelled by the high-pressure vapor. Second, is at the conclusion of defrost, when liquid conden-sate inside the coil is suddenly released to the low side of the system.

Refrigeration Valves Commercial Refrigeration Miracle

gradually introduces hot gas to the coil. Opening this valve first further reduces the likelihood of damaging pressure shocks. At the conclusion of this phase, the soft gas valve is closed. 4. HOT GAS PHASE: The hot gas solenoid is opened and hot gas now flows more quickly through the drain pan, warming it, and then into the coil.

Modern Refrigeration And Air Conditioning 19th Edition Page 476 498 Of 1488

solenoid valve and/or a hot gas bypass circuit often are integrated into the system design. Fig. 6. Pressure/Enthalpy Diagram for Parallel Hot Gas Reheat Cycle Fig. 5. Parallel Hot Gas Reheat Cycle 1' 2' 3' 4'
