39 draw the shear diagram for the beam.

Transcribed image text: Problem 7.53 Part A Draw the shear diagram for the beam. Click on "add discontinuity" to add discontinuity lines. Draw, reasonably to scale (use graph paper), and label the shear and moment diagrams for the beam and loading shown. Specifically, label the values at A, B, C, and D (label values immediately left and right of points if there is an abrupt change in...

Shear and Moment Diagrams Shear and Moment Diagrams Consider a simple beam shown of length L that carries a uniform load of w (N/m) throughout its length and is held in equilibrium by reactions R 1 and R 2. Assume that the beam is cut at point C a distance of x from he left support and the portion of the beam to the right of C be removed.

Draw the shear diagram for the beam.

The shear force and bending moment values at different locations of the beam are calculated. The shear force diagram and bending moment diagrams are is drawn by plotting the beam length along the x -axis and magnitudes of the shear force and bending moments along the y -axis. Calculate the maximum shear force. The areas of the shear force diagram for the different segments of the beam are shown in Fig. (c). We begin by noting that M_{A} = 0 because no couple is applied at A. Plot point i. Proceeding from left to right across the beam, we construct the bending moment diagram as follows: M_{B}=M_{A} +area of V-diagram] _{A}^{B} = 0 + (−800) = −800 ... 24 Mar 2018 — Draw the shear diagram for the beam. Click on “add discontinuity” to add discontinuity lines. Then click on “add segment” button to add ...

Draw the shear diagram for the beam.. The beam is 20ft long divided into 5 foot sections. Shear diagrams always begin and end at zero, with all of the forces on the member shown in between. Starting from the left, the first force you come across is the 10 lb downward force at the left end. This is the first point of data, draw a line from zero to negative 10. Therefore the bending moment diagram is: Example 2 Draw the shear force and bending moment diagrams for the beam show below: a) determine the reactions at the supports Taking moments about A (clockwise moments = anti-clockwise moments) (10 x 6) x 3 = 6RC where 10 x 6 =60kN = total load and 3m =distance from A to where the load is acting. 6RC=180 Shear Force and Bending Moment Diagram for a simply supported beam are as follows. Case 01. Simply supported beam with point load. Simply supported beam with point load To find out Shear Force, first we will calculate R a and R c. Beam is simply supported ∑M a = ∑M c = 0. Let us consider ∑M a = 0. Answer (1 of 2): EDIT 2020-09-14 Without explaining all the calculus to prove it, a simple rule of thumb is: 1. the change in shear = -(area under the load curve (w)) 2. slope of the V curve = -(w) 3. slope of the M curve = V 4. the change in M = area under the V curve. Here's how I got my numb...

Draw the shear force and bending moment diagrams for the cantilever beam supporting a concentrated load of 5 lb at the free end 3 ft from the wall. 1. Draw a FBD of the structure 2. Calculate the reactions using the equilibrium equations (may not need to do this if choosing a cantilever beam and using the free side for the FBD). of 7.2 kN, as illustrated below. Draw shear force and bending moment diagrams for the beam. Find the maximum maximum shear stress and the maximum bending stress. 5.6 m A B 4.7 kN/m Solution : By the symmetry of the beam loading: R A = R B = 5.6×4.7 2 = 13.16 kN The load is distibuted so the shear force diagram is linear (it has a constant slope). Consider the free body diagram of the beams ABE and CBD of the beam separately and apply the force equilibrium equations to calculate the unknown support reactions at A, B, C and D.Consider a section between each segment of the beam and apply the equilibrium equations to calculate the shear force and bending moment at each location of the beam. Free online beam calculator for generating the reactions, calculating the deflection of a steel or wood beam, drawing the shear and moment diagrams for the beam. This is the free version of our full SkyCiv Beam Software. This can be accessed under any of our Paid Accounts, which also includes a full structural analysis software.

These instructions will help you to calculate and draw shear and bending moment diagram, as well as draw the resulting deflection. Knowing how to calculate and draw these diagrams are important for any engineer that deals with any type of structure because it is critical to know where large amounts of loads and bending are taking place on a beam so that you can make sure your structure can ... You will be fully competent in drawing shear force and bending moment diagrams for statically determinate beams and frames. You will have a robust system of analysis that allows you to confidently tackle the analysis of any statically determinate structure. drawing the S/B diagrams. [1,2]The method of sections can be used to determine fully the shear force and bending moment at any cross-section of beams and to draw the S/B diagrams. When there are several external forces on a beam, the beam must be divided into several segments. The method of sections will be used repeatedly in each segment. It is visually desirable to draw the V-diagram below the FBD of the entire beam, and then draw the M-diagrambelow theV-diagram. The bending moment and shear force diagrams of the beam are composites of the Vand Mdiagrams of the segments. These diagrams are usually discontinuous, or have discontinuous slopes.

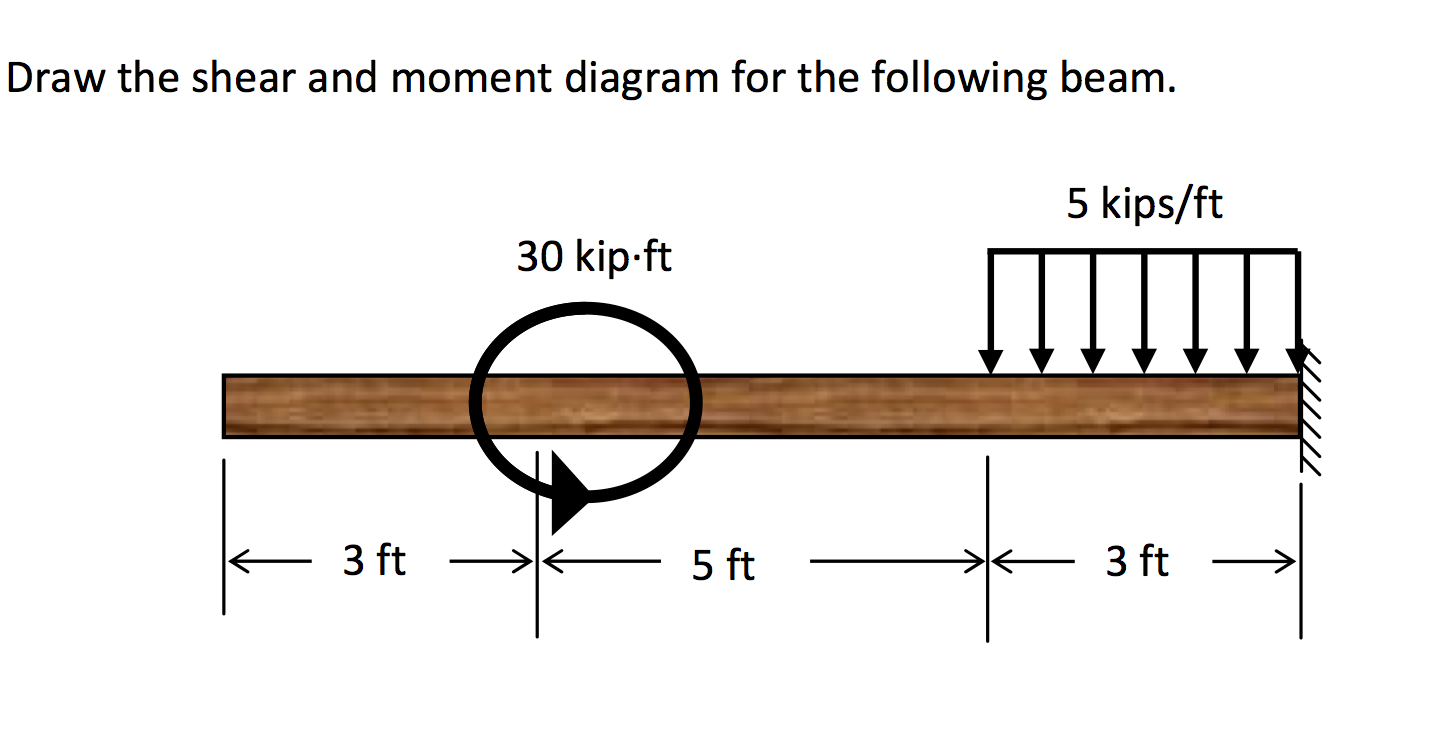

Solved: Draw The Shear And Moment Diagram For The Followin ...

Steps to draw Shear force and Bending moment diagrams. In SFD and BMD diagrams Shear force or Bending moment represents the ordinates, and the Length of the beam represents the abscissa. Consider the left or the right portion of the section. Add the forces (including reactions) normal to the beam on the one of the portion.

Image from page 168 of "The strength of materials; a text-book for engineers and architects" (1916)

Draw The Shear Diagram For Beam - The Best Picture Of Beam. Shear and moment in beams draw a shear diagram for the beam moment diagrams constructed by the 4 5 ...

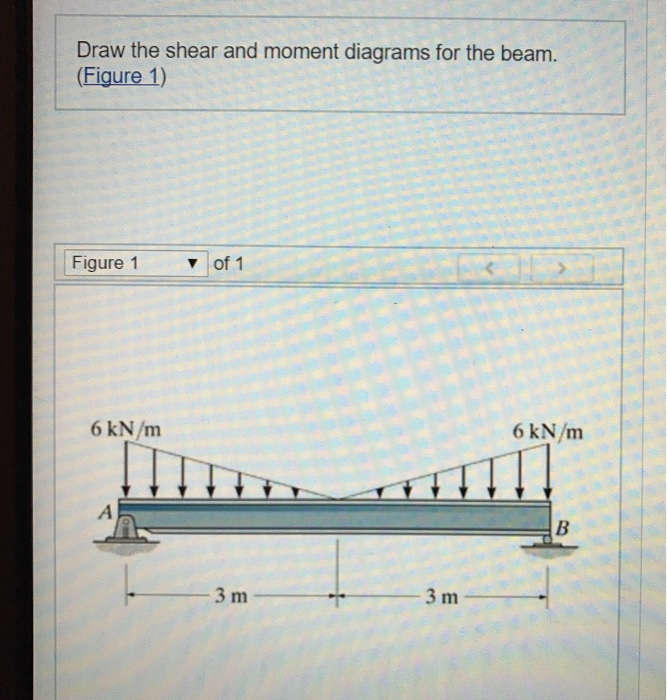

Solved: Draw The Shear And Moment Diagrams For The Beam, A ...

Answer to Draw the shear and Moment diagrams for the overhang beam. How the bending moment diagram of an overhanging beam will be if only we can draw the shear force diagram since it dictates the shape of bending moment . 6-5. Draw the shear and moment diagrams for the beam. 2 m. 3 m. 10 kN. 8 kN. 15 kNm. 6-6.

Solved: Draw The Shear And Moment Diagrams For The Cantile ...

(c) on a drawing of the beam sketch the inclined cracks that would develop at a, b, and c. Draw the shear diagram for the beam. 6.30. (b) show the direction of the principal tensile stresses at middepth at points a, b, and c. Draw the stress strain graph of an ms rod and mark its main points.

Beam Calculator With Internal Hinge - The Best Picture Of Beam

Here are simple five steps applicable for drawing almost all types of shear force diagram correctly (Refer the following typical example in connection with the below steps): 1. Draw a horizontal line to represent the beam and divide the line by putting points at the following locations: - At the reaction locations.

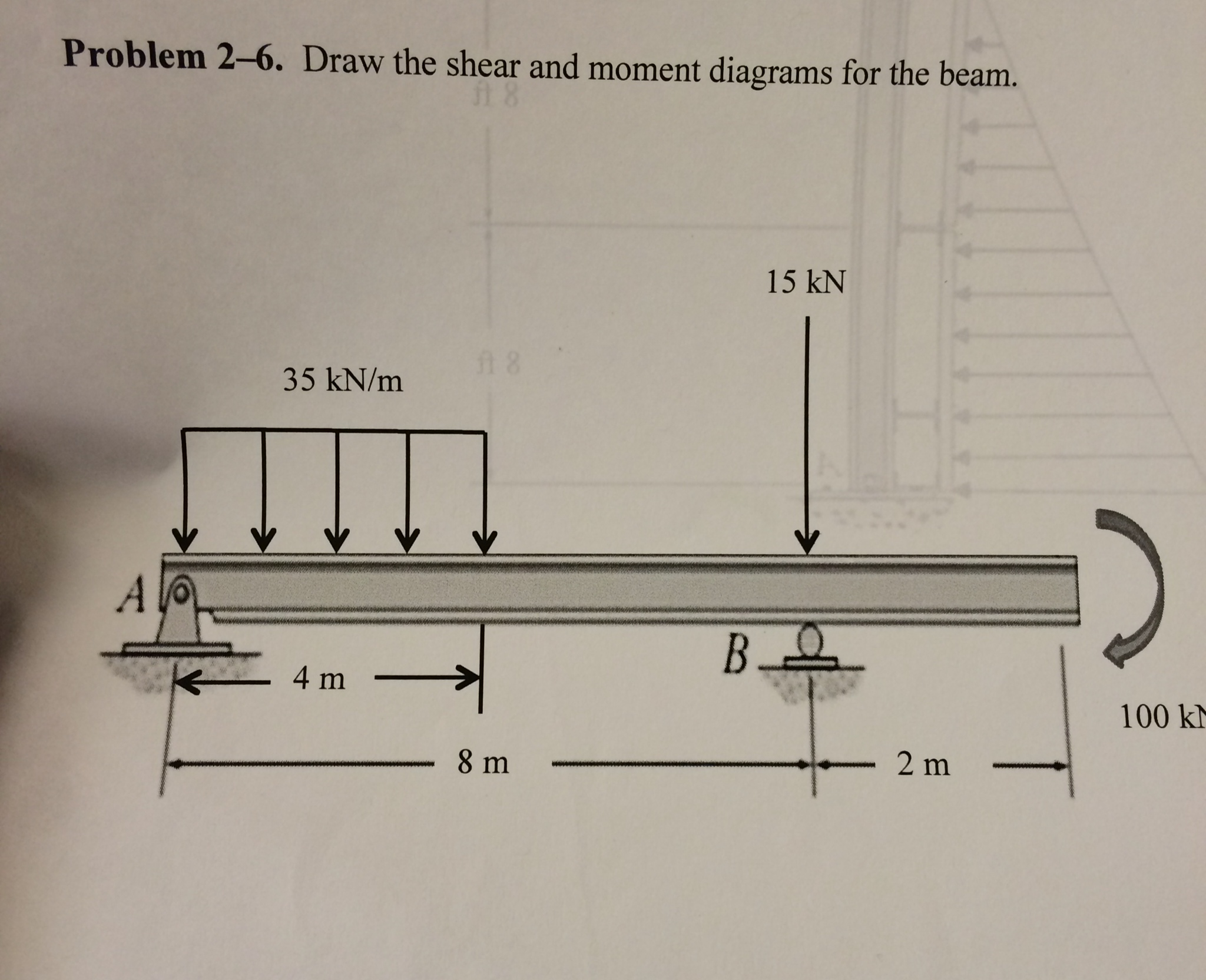

Solved: Draw The Shear And Moment Diagrams For The Beam. T ...

Draw shear force and bending moment diagram of simply supported beam carrying uniform distributed load and point loads. As shown in figure. Solution First find reactions R1 and R2 of simply supported beam. Reactions will be equal. Since, beam is symmetrical. R1 = R2 = W/2 = (600 +600 + 200 x4)/2 = 1000kg Hence, R1 = R2 = 1000 kg. Shear Force

Solved: 3. Draw The Shear And Moment Diagrams For The Beam ...

Draw the shear and moment diagrams for the beam, and determine the shear and moment throughout the beam as functions of x. Results. See All Results. Question: Mechanics of Materials - Instructor Solutions Manual [EXP-4667]

Solved: 1) Draw The Shear Diagram For The Beam. Follow The ...

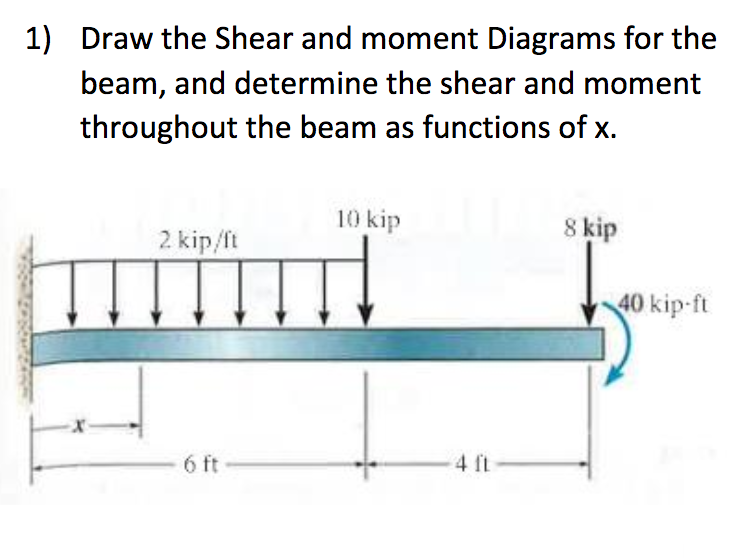

Draw the shear and moment diagrams for the beam in terms of the parameters shown. Given: P = 800 lb a = 5 ft L = 12 ft View Answer. Draw the shear and moment diagrams for the beam. Units Used: kN = 103 N Given: a = 2 m b = 4 m = w 1.5kN/m View Answer. Draw the shear and moment diagrams for beamCD. View Answer.

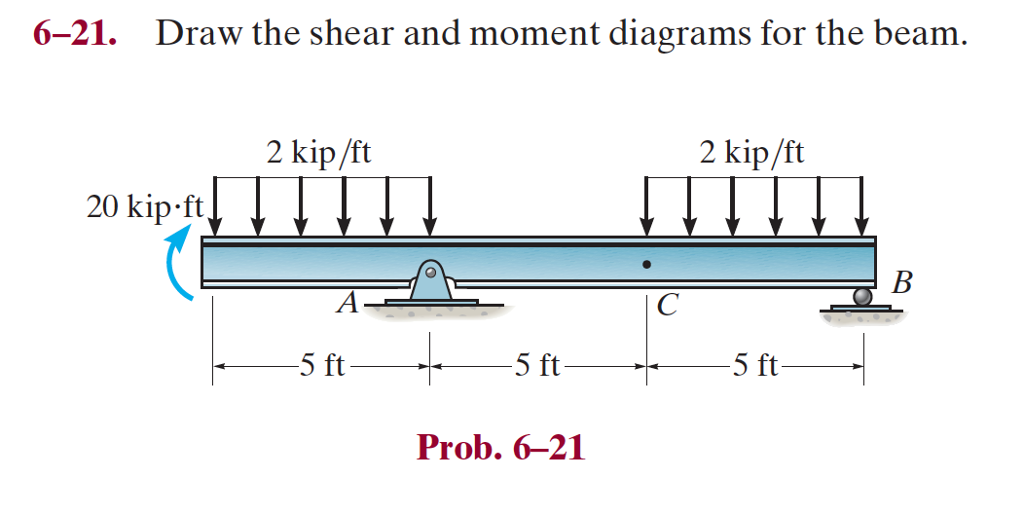

Solved: Draw The Shear And Moment Diagrams For The Beam ...

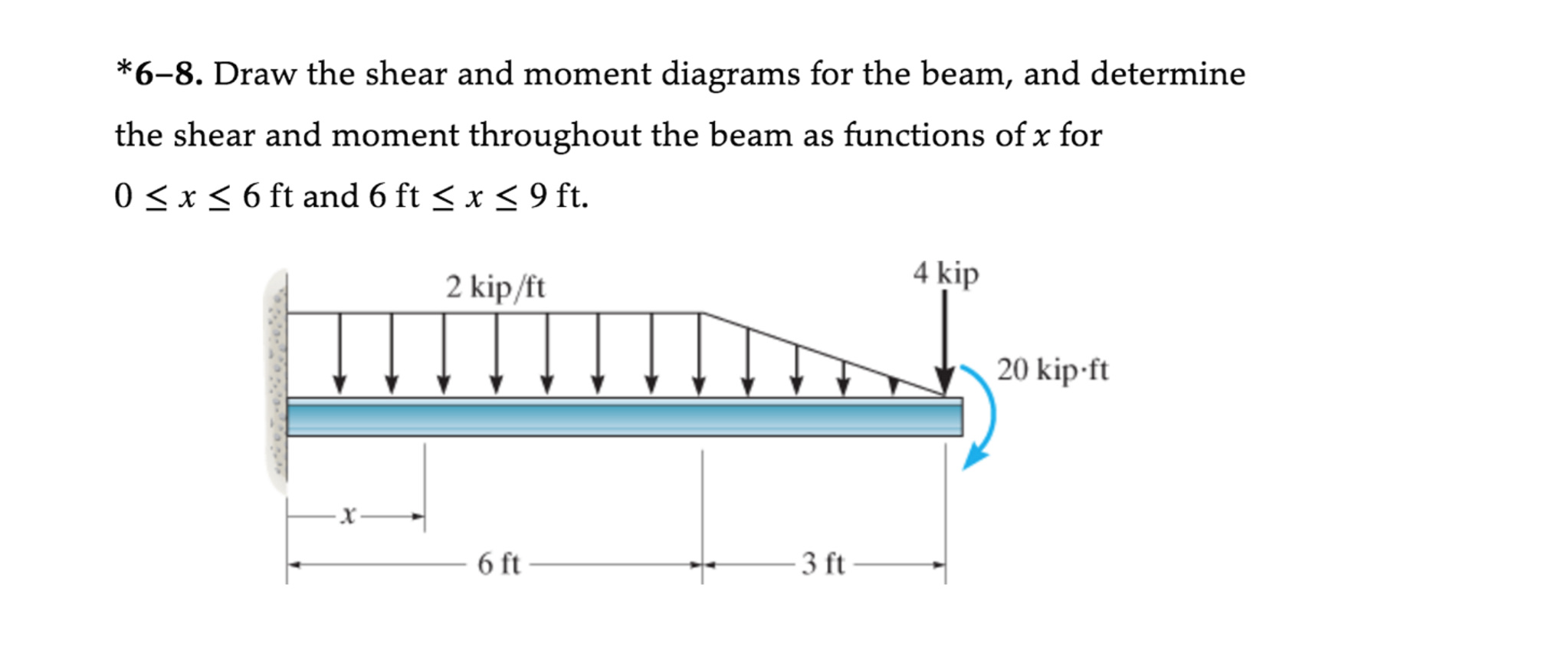

6–9. Draw the shear and moment diagrams for the beam. Hint: The 20-kip load must be replaced by equivalent loadings at point C on the axis of the beam.143 pages

Solved: Problem 7.85 Draw The Shear Diagram For The Beam ...

Solve for all external forces and moments, create a free body diagram, and create the shear diagram. Lined up below the shear diagram, draw a set of axes. The x-axis will represent the location (lined up with the shear diagram and free body diagram above), and the y-axis will represent the internal bending moment.

Solved: 7-61. Draw The Shear And Moment Diagrams For The B ...

First draw the free-body-diagram of the beam with sufficient room under it for the shear and moment diagrams (if needed, solve for support reactions first). 2. Draw the shear diagram under the free-body-diagram. The distributed load is the slope of the shear diagram and each point load represents a jump in the shear diagram. Label all the loads ...
